Refrigerant : R407c/R410a

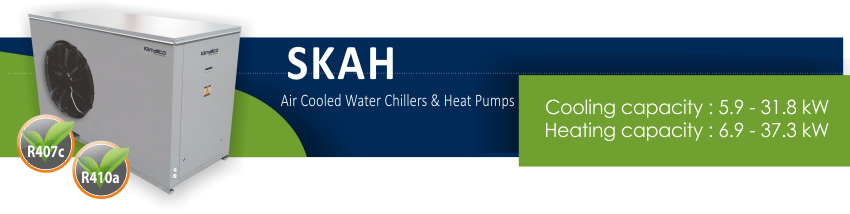

The Klimallco SKAC / SKAH large series are packaged air cooled water chillers for cooling applications and outdoor installation. They are available in 9 models with nominal cooling capacities ranging from 5,8 to 31,8 kW and 6,9 to 37,3 kW.

These series are ideal in combination with Klimallco fan coil or air handling units for air conditioning office buildings, hotels, hospitals shopping centers, restaurants, etc., or for supplying chilled water for industrial applications.




  • Optimized design for R407c/R410a refrigerant.
  • Casing : galvanized steel plate with polyesteric coating.
  • Assembly : fully bolted/welding free. Built in complete hydraulic module.
  • Compressor : hermetically sealed scroll type.
  • Air heat exchanger : cross fin coil.
  • Direct drive propeler fan : low rpm, quiet operation.
  • Water heat exchanger.
  • Plate heat exchanger.
  • Safety and functional devices:

- High/low pressure switch.

- Differential pressostat.

- Plate heat exchanger low temperature protection.

- Electronic microprosessor control with digital display.
