The Klimallco MKAC - MKAH medium capacity series are packaged air cooled water heat pumps for cooling and heating applications and outdoor installation. They are available in 3 series with 8 models with nominal capacities ranging from 39,7 to 168,2 kW.

This series is ideal in combination with residences, offices, hotels, hospitals, shopping malls, shops, restaurants, etc., or for supplying water for industrial applications.



  • Optimized design for R410a refrigerant.
  • Casing:  Galvanized steel plate with polyesteric powder coating.
  • Assembly: Fully bolted/welding free.
  • Compressor: Hermetically sealed scroll type.
  • Air heat exchanger: Cross fin coil. Internally grooved copper tubes and louvered aluminium fins.
  • Direct drive propeler fan: Low rpm, quiet operation.
  • Water heat exchanger: Shell and tube type.
  • Free cooling coil:  Hydromodule.
  • Safety and functional devices:

- High/low pressure switch.

- Phase sequence - phase failure - reverse phase and voltage monitoring device.

- Evaporator low water temperature protection.

- Electronic microprocessor control with digital display.

- Differential water pressure switch.

- Linear fan speed regulation according to coil temperature or circuit pressure.

- High and low pressure manometers.

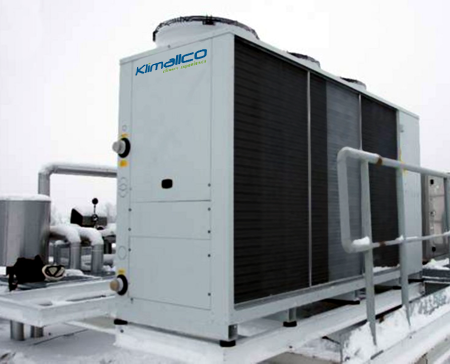

 MKCA outsmall

MKAC - Compressor

All units use low-noise, maintenance free, Hermetic Scroll compressor with low vibration levels, specially optimized for use with R410a refrigerant, selected from world class suppliers. They are equipped with a crankcase electrical heater for the oil, and are internally protected against potential overloading or electrical spikes. The compressors are mounted on special antivibration rubber mounts to eliminate vibration from the unit’s.

MKAC - Hydraulic kit

This versionis equipped with hydraulic kit. It includes : one or two pumps (one as stand-by), expansion vessel, gauses, flow switch, safety valve, air purger, shut off valve and hydraulic circuit insulated. In case of stand-by pump non-return valves are mounted. Relevant electrical circuit. As option, pumps with higher ESP are available.

MKAC - Axial Condenser Fans

All unit fans are of the axial type made of Al/Mg, directly coupled to a three phase electric motor with external rotor, 6 poles, internally protected against potential overheating, silent and suitable for outdoor installation. Due to the sophisticated aerodynamic design of the blades and inlet cones, as well as the perfect static and dynamic balancing, their operation is completely vibration-tree.The fan-motor assembly has a protective grid against accidental contact with moving parts, which is designed according to lS0 regulations. Fan motors are of the external rotor type, aerodynamically shaped so as not to interfere with the airflow.
