Description
The winning and new design gives to this product a totally new look enabling an easy integration in commercial sites (Shopping Centres, Shops, Warehouses, Outlets, etc.) further to industrial sites, where this product is quite typical.

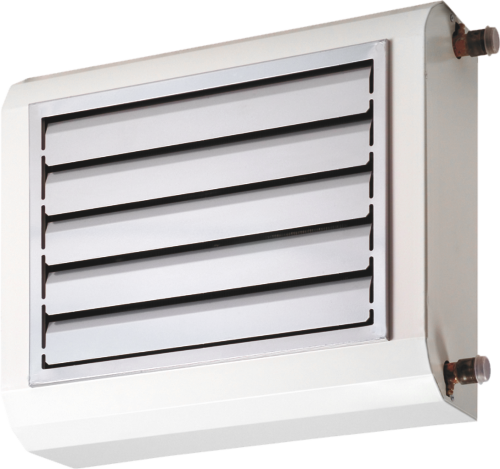

CABINET (Pre painted Steel + Adjustable Grills)
Cabinet made of extremely thick galvanized steel-sheet and pre-painted white RAL 9002.
Air supply single bank adjustable grill (enables to send the air-flow in any direction high/down) made with painted grill grey RAL 9007.
HEAT EXCHANGER Water coil
Highly efficient coil made of copper pipes and aluminium fin fixed by mechanical expansion. Coils without air vent valves, standard connections on the right side (on request left side). Coils tested at 30 Bar pressure, suitable to work with water at max 15 Bar pressure.
FAN SECTION
Fan section including 1 or 2 fans directly coupled to 1 or 2 electric motors. Mounted on elastic and anti-vibration supports.
Fans statically and dynamically balanced.
Electric motors provided with heat protection (Klixon), running capacitor permanently switched on, electric cables protected by double insulation.
Manufactured according with the international standards, with fan protection grill.
- 1 speed helicoidal fan Helicoidal fans with aluminium blades.
- 1-Speed electrical motors, IP 54, Class B, 230Vac–1
ACCESSORIES
For the electrical units lT lS ALWAYS RECOMMENDED to use a control panel with POST - VENTlLATlON function: useful function for the reduction of the thermal inertia of the electrical heater and thus to protect the unit from highly damaging thlermal shocks .
For controller type please consult technical department.
- 3-way valves upon request.
